Three axis router

The following is a three axis router created in turbocad professional.

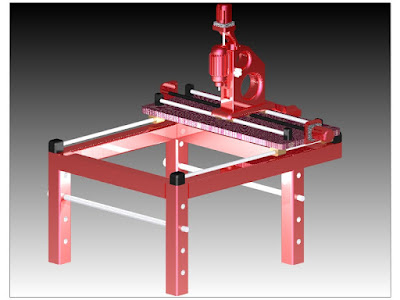

The drawing uses a fair few of turbocads materials package like cast aluminium for the motor mounts, Chrome rods for the sliders, A plywood board for the table and a red paint from the paint palette for the frame, A bronze from the metals palette for the bearings.

Various materials used here, chrome wood cast aluminium and red paint

Close up shot of the router

cnc router designed in turbocad
